The term "plastic closure" refers to the small plastic caps that are commonly used to seal food and beverage packaging. These lids are designed to provide a tight seal, keeping products fresh and making them easier to transport. Plastic closures are also used for opening and resealing packaged products. Such closures are usually made from materials such as PET, PP or PS and are available in many different shapes, sizes and colors.
Like the carbonate beverages, fruit juice, tea drinks we all call it "soft drinks", Soft drinks plastic cap technology requirement is higher than water caps. Plastic beverage caps play a vital role in numerous beverage applications, providing functionality and ensuring...
28mm water cap is one of our popular production.
What is the advantage of 28mm water cap?
1. The cap surface is smooth, easy to print, and the cost of engraving logo is low.
2. The cap has a small shrinkage factor and more precise size.
Like the carbonate beverages, fruit juice, tea drinks we all call it "soft drinks", Soft drinks plastic cap technology requirement is higher than water caps. So, when we make the soft drinks plastic cap, we will send the samples to customer, let them confirme the quality firstly.

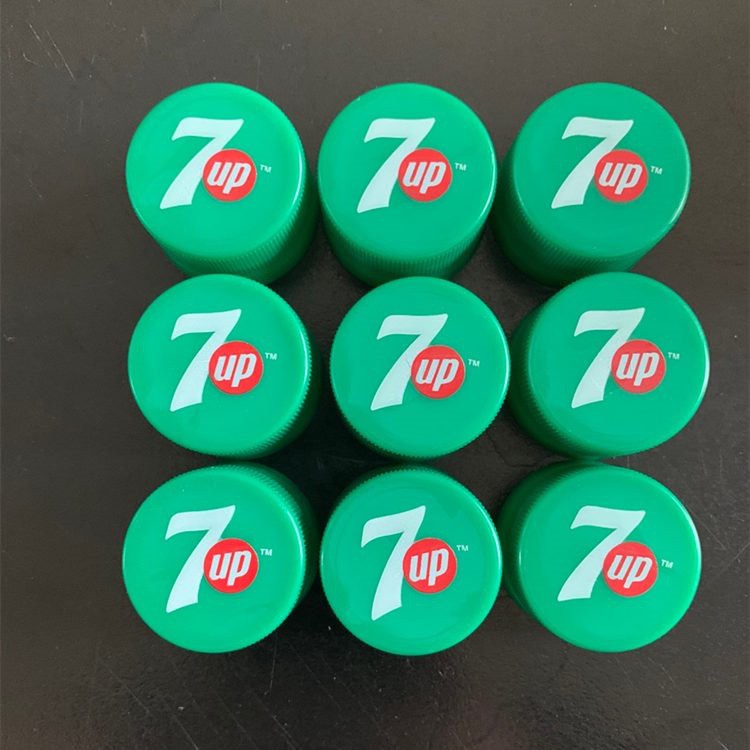

28mm long neck cap we also named pco 1810 cap, this type cap had been designed more than 20 years. At first, this 28mm long neck cap is put use on the soda drinks. With the development, more and more customer change their cap type, because the 28mm long neck cap weight is too...

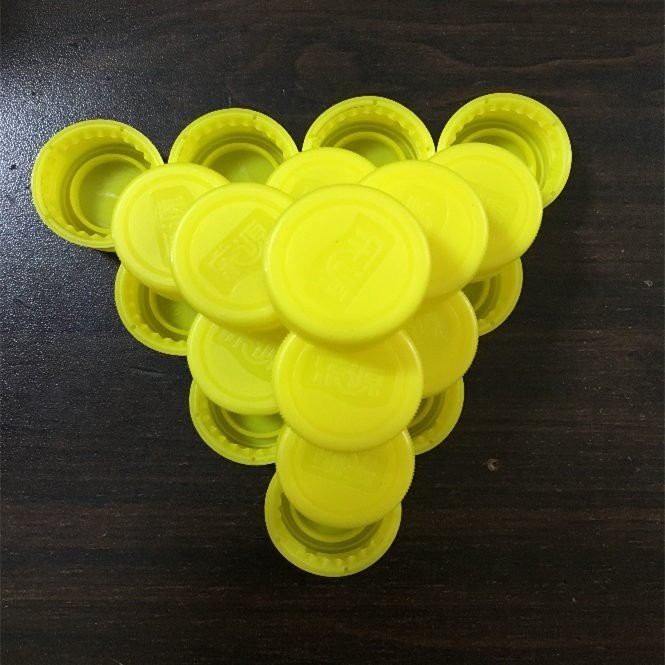

28mm short neck cap we also named pco 1881 cap, this type cap is populared in recently years. With the development, the market is more competitive, in order to save the production cost.
CSD cap is the abbreviation Carbonated Soft Drinks cap, like the spring, coca-cola, Pepsi, Seven up, Fanta all use the CSD cap for their drinks. This cap sealing performance is good and have Excellent thermal stability.

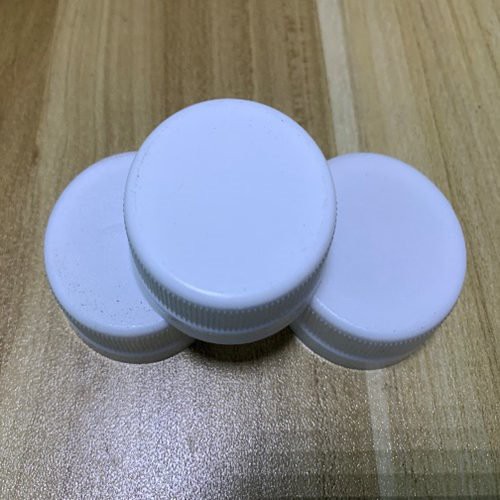

38mm cap is becoming popular in the past few years. A lot of milk drinks, sports drinks, fruit juice use this size cap. For the drinks factory 38mm cap is a good cap choice, because the same capacity bottle, customer finishe the drinks use less time.
30mm water cap is the most popular and biggest cap. Compare with other caps, 30mm water cap demand is very huge. Almost all biggest water factory need this cap.
Coca-cola cap is specialy designed for coca-cola, it is high requirement of the cap structure. The cap need to afford the high gas pressure. After the transporation that ensure the gas not leaking.

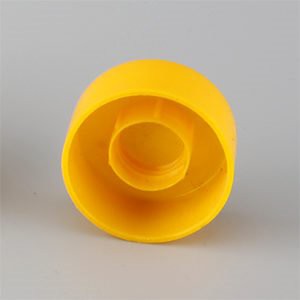

Our company produce the toothpaste cap by cap compression molding machine. As far as I know, in china only our company have this technology, others all use injection machine to produce the toothpaste cap, compare with injection machine, compression toothpaste cap surface is...
Pco 1810 cap, we according the prefrom type to name it.we also name it 28mm long neck, this type cap had been designed more than 20 years. At first, it is used on the soda drinks. With the development, a lot of customers give up this type cap, they think this cap weight is...
PCO 1881 cap is populared in recently years. Like the coca-cola, Pepsi those big companies all start to choose pco 1881 cap, Because With the development, the market is more competitive, in order to save the raw material cost, pco1881cap is a good choice, compare with the...
Functionality
Plastic lids protect packaged products from air, water and other external factors, keeping them fresh and clean.
Economic
Plastic closures provide an inexpensive packaging option as production costs are low.
Environmentally friendly
Plastic lids can be made from reusable and recyclable materials. This helps to conserve natural resources and reduce waste.
Variety
Plastic lids can be produced in different shapes, sizes and colors. This provides flexibility in product packaging and marketing.
Hygienic
Plastic lids ensure hygienic storage and transportation of food and beverages. This increases the health safety of the products.
Easy to use
Plastic lids provide ease of opening and closing. This allows consumers to use and reclose products more easily.
Why Choose US
Our Factory
Shaoxing Huangguan Machinery Co.,Ltd is located in the fuquan industrial area, Shaoxing city, Zhejiang province. Close to the Kuaijishan in the south, Qiantang river in the north, Hangzhou in the west and Ningbo port in the east. Shanghai - Hangzhou - Ningbo highway is near at hand. Only 25km from the Hangzhou international airport.
Professional Technical Team
They can design and develop various mould and machine to meeting different customer requirements due to the precision CNC machine and CAD/CAM/CAE technology are introduced and application.
Improve Product Quality
Our company insists on absorbing home and foreign advanced technology and has accumulated more than twenty years experience of plastic cap making equipment. The steady, safe and durable plastic cap molding machine and lining machine as well as international level that producing by innovating the idea developed constantly. In order to improve the quality of our production, we has established the widespread cooperation on technology with many universities.
Production Management
Now, the production of cap making equipment has been put on a standardized, normalized and scientific administration track. We can offer the production with higher efficiency and perfection to all the customer in the future.
Plastic lids are produced in many different shapes, sizes, materials and purposes. Below are some commonly used types of plastic lids:
Stopper Caps: These caps are small stopper-like caps that are placed on the mouth of bottles. They can be compressible or screw-on. For example, screw-on stopper caps are often used on water bottles.
Bucket Lids: These are lids that are placed on the mouth of plastic buckets. They are widely used especially in the food industry.
Aluminum Lids: These lids are usually placed on top of cans or cans. Aluminum lids help prevent air and moisture from entering the food.
Bottle Caps: These caps are usually placed on the mouth of plastic bottles. They are widely used, especially in the beverage industry.
Peelable Lids: These caps are commonly used for packaging products such as yogurt, butter and jam. The lids have an adhesive layer that can be easily peeled off.
Pressurized Lids: These are caps that are placed on the spout of beverage bottles. The caps hold the pressure of the carbonated beverages inside and ensure a tight seal.
Twist-off Caps: These caps are commonly used for packaging products such as pickles, jams and tomato paste. The lids can seal the product airtight when twisted to open.
Plastic lids are used for many different purposes for food and beverage packaging. Below are some of the common uses of plastic closures:
Sealing: Plastic lids seal the food or beverages they contain. This keeps the products fresh and makes transportation easier.
Product protection: Plastic lids protect food and beverages from air, dust and other external factors. This prevents spoilage or contamination of products.
Ease of opening/closing: Plastic lids are used for opening and resealing packaged products. This makes the products easier and more practical to use.
Brand promotion: Plastic lids are used for brand logo and information on packaged products. This increases brand awareness of the products.
Ease of storage: Plastic lids are used for storing packaged products. This facilitates proper stacking and storage of products.
Hygiene: Plastic lids ensure hygienic storage and transportation of food and beverages. In this way, the safety of the products in terms of health increases.
PET bottle caps can be produced in a variety of colors. Color selection may vary depending on the brand, content or intended use of the product. Here are some of the commonly used colors of PET bottle caps:
White: White is one of the most commonly used colors in PET bottle caps. White color is frequently preferred on the lids of water bottles, milk bottles and other beverages.
Blue: Blue colored PET bottle caps are frequently seen, especially on sodas and sports drinks.
Green: Green colored PET bottle caps are often used for products such as natural beverages, juices and herbal extracts.
Red: Red can be preferred on the lids of products such as energy drinks and fruit juices.
Yellow: Yellow colored PET bottle caps are frequently seen on products such as lemonade and energy drinks.
Black: Black colored PET bottle caps are preferred especially for luxury drinks and wine bottles.
Orange: Orange can be used on the lids of fruit juice and citrus flavored drinks.
Purple: Purple colored PET bottle caps can be used on beverages and products specifically designed around childhood.
Pink: Pink colored PET bottle caps are generally preferred in cosmetic products and children's beverages.
Transparent: Transparent, i.e. colorless, PET bottle caps are widely used, especially for water and other beverages. This color is preferred to be able to see the inside of the drink.
Bottle Cap Manufacturing
Bottle caps are an important element for packaging beverages and other consumer products. These lids preserve the freshness and sealing properties of beverages and ensure safe and hygienic storage of products. Bottle caps are an integral part of packaging, both functionally and aesthetically, and can increase consumer interest in the product.
Bottle cap manufacturing is a process that requires high precision and quality. The first step is to design the mold. The mold determines the shape and size of the bottle caps. The design is carried out using CAD software and 3D modeling techniques. In the mold design, sealing, ease of opening and closing and aesthetic details of the covers are taken into consideration.
Once the mold design is completed, the mold block is produced from durable materials such as steel or aluminum. The mold block is shaped using CNC (Computer Numerical Control) machines and the mold parts are assembled. These parts are special components that determine the shape and details of the bottle caps.
After the mold is produced, PET plastic granules are injected into the mold. This process allows the molten plastic material to seep into the mold cavities and take the shape of the lids. After the cooling process, the mold is opened and the bottle caps are removed. In the last step, the caps are cut and separated.
Bottle caps are widely used in the pharmaceutical, cosmetics, cleaning products and other consumer products sectors, especially in the beverage industry. Colour, shape and size may vary depending on the brand and target audience of the product. For example, while simpler and more functional caps are preferred for water bottles, more aesthetic and eye-catching caps can be used for wine bottles.
As a result, bottle cap manufacturing is carried out in high quality and safely, thanks to carefully designed molds and high-technology machines. As an integral part of packaging, bottle caps play an important role in ensuring the safety, protection and consumer appeal of products.
Specification:
1) Internal dimension:(± 0.15mm), Thread inner diameter,inner-plug outer diameter, top thickness;
2) External Dimension (± 0.30mm): Cap Outer diameter,Cap height;
3) Others: Weight (± 0.1g).
Appearance:
1) Surface: Complete shape. Without starving, injury, flare, and out of shape.
2) Color: Meet the tolerance of sample, even color.
3) Sealing: Without injury, distortion.
4) Lateral seal/ top seal: No bubble or injury.
5) Thread: Not less than thread inner diameter lower limit.
6) Cap slitting: No breakpoints, conglutination orstarving.
7) Injection gate: Nocracks, holes, injection gate residue, or sink marks.
8) Pollution: No oil marks, dirt, stains, etc.
9) Printing: Clear pattern, no printing lack or other defects, meet the tolerance of ink and pattern requirement, off-center tolerance value ± 0.3mm.
Physical Property:
1) Thermostability: No broken, distortion, and leakage.
2) Low temperature resistance: No distortion and leakage.
3) Drop performance: No broken, no leakage.
4) Peculiar smell: No abnormal smell.
Tamper Evident( TE) physical performance:
1) Capping: No distortion and break of TE, after capping.
2) Anti-theft:With evidence after cap open.
3) Open torque (lbf. in): TE broken torque (lbf. in)
Hot filling cap(Compression cap) :13~18, 5~9.
Hot filling(injection cap):15~18, 5~9.
Aseptic bottle cap :10~16, 8~12.
Water cap: 6~14. 5~9.
How Is Plastic Bottle Cap Designed
The cap is fastened on the mouth of the bottle by fitting with the mouth of the bottle, which is to prevent the leakage of the material inside the bottle and the invasion of the outside bacteria. After tightening the cap, the top of the bottle goes deep into the top of the cap to the sealing gasket. The measuring groove of the cap and the thread of the cap are in close contact with each other to provide pressure for the sealing surface. Several sealing structures can effectively avoid leakage or deterioration of substances in the bottle.
The outer edge of the cap also has a lot of strip-like anti-skid grooves, which is easy to increase friction when opening the cap.
One: Two kinds of technology of plastic cap production
Compression moulding-plastic bottle cap production process
Injection bottle cap production process
Two: Anti-theft ring (ring) production
Compared with the traditional injection molding process, compression molding process is characterized by stable process, good quality uniformity, perfect product appearance and low energy consumption.
In fact, the compression molding process has a very big advantage that is often ignored by everyone, that is, the compression molding process of bottle caps in the process of changing colors is much simpler and faster than the injection molding process.
Comparison of color change between compression molding process and injection molding process and how to achieve fast color change.
In the traditional injection molding industry, most of the injection mould is to use the needle point hot runner, the die is not only expensive, but hot runner complex internal structure, the molten plastic is easy to adhesion in internal corner and side wall place, turn color want to sort out the internal residual color is very difficult, often requires a lot of time and materials to do waste cover, turn color cost is very high.
It may be suggested that recycling materials should be used to clean the hot runner for the purpose of saving materials. However, we should not forget that recycling materials cannot be 100% clean. Even if there are very small particles, the needle point in the hot runner will be blocked in the gate.
Moulding process for forming process is simple, the plastic melt through the extruder after directly after the nozzle into the mold, there is no complex into the adhesive system, it is for the color conversion of absolute advantage, on the injection molding process of needle point into the gate and its size is about 0.5 mm, slightly careless leads to gate jams, therefore, 95% of the manufacturers can't add a recycle material, the molding process of the size of the nozzle is usually about 10 mm, no congestion, all in the recovery is expected to add overwhelmingly use molding process and advantages.
After comparing the advantages of injection molding and compression molding in color rotation, we further discuss how to give full play to the advantages of the printing machine in color rotation.
Usually, after receiving the order, the production planner needs to have a clear concept in mind, which is to follow the principle of color similarity as far as possible when the delivery date allows. The color should be changed from light to dark, and avoid from light to dark, which brings great convenience to the color transformation. Here is a simple example:
In factory workshop, we will have an area special place different colors of recycled materials, these recycled materials dedicated to turn color applications, in an order, before the end of the recycling material with next order color to get out and placed at the edge of the machine, hopper under observation window, after an order on raw material basic consumption immediately clear when the feeding system and bin, after the completion of the manual to join the next order color recycle material, now need to open the exhaust mouth, waste production machines run continuously turn color cover, after waiting for cap color normal open normal feeding system, the whole mould check cap quality normal after normal production.Through this kind of operation method, compression molding machine can usually achieve color rotation without stopping, very fast and convenient.
After long-term statistical data of bottle cap production, the comparison of injection molding and compression molding costs in color conversion and addition of recycled materials is obtained in the table below. It can be seen from the table that the advantages of compression molding process in color conversion cost are very significant.
In the production industry of bottle caps, the advantages of compression molding technology are more and more valued in the industry, and the traditional injection molding technology is gradually replaced by compression molding.
